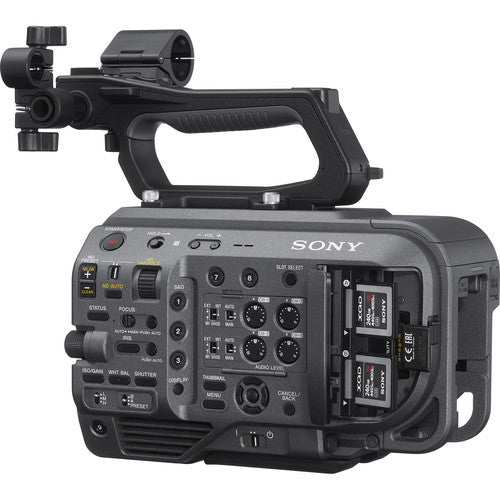

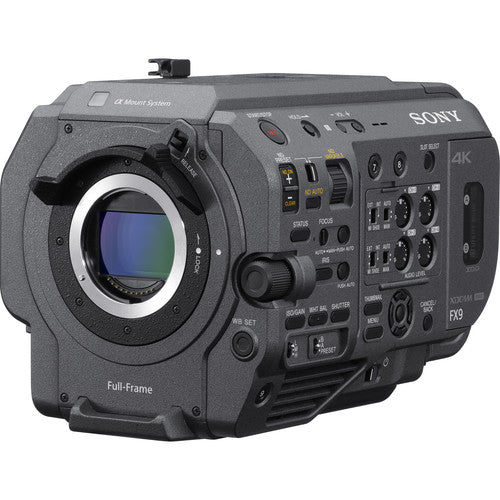

Whether you're shooting documentaries, events, reality TV, education, or corporate productions, the PXW-FX9 XDCAM 6K Full-Frame Camera System from Sony has you covered with its powerful and flexible 4K interchangeable lens camera system. The PXW-FX9 features a full-frame, oversampled 6K Exmor R CMOS sensor that allows you to capture 4K images with cinematic depth of field.

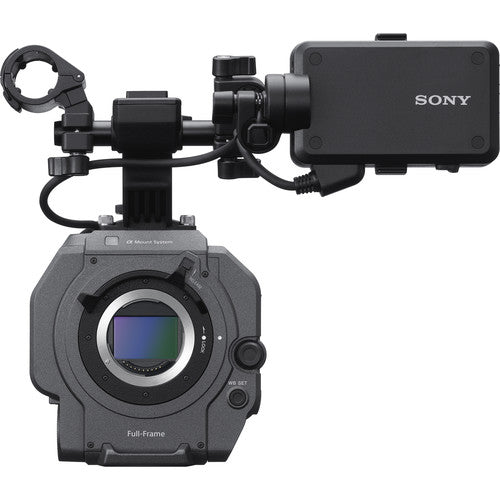

Lens Mount | Sony E |
Lens Communication | Yes, with Autofocus Support |
Sensor Resolution | Actual: 20.5 Megapixel Effective: 19 Megapixel |
Image Sensor | 35.7 x 18.8 mm (Full-Frame) CMOS |
Image Stabilization | Supplies Stabilization Metadata |
Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters and a 2 to 7 Stop Electronic ND Filter |
Internal Filter Holder | No |
Capture Type | Video Only |
Shutter Type | Electronic Rolling Shutter |
Shutter Speed | 1/8000 to 1 Second |
ISO Sensitivity | 800 to 4000 (Extended: 320 to 102,400) |
Gain | -3 to 18 dB |
Shutter Angle | 5.6 to 360° |
Advertised Dynamic Range | 15 Stops |
Signal-to-Noise Ratio | 57 dB |
White Balance | 2000 to 15,000K |

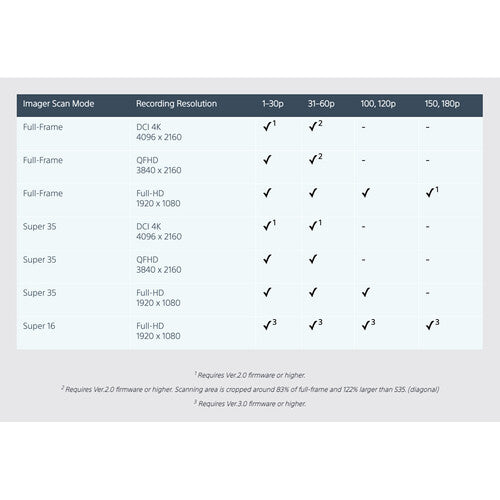

Internal Recording Modes | XAVC-I 4:2:2 10-Bit 4096 x 2160 at 23.98/25/29.97/50/59.94 fps 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [240 to 600 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/100/120 fps [89 to 222 Mb/s] 1920 x 1080i at 50/59.94 fps [112 Mb/s] XAVC-L 4:2:2 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [100 to 150 Mb/s] 1920 x 1080p at 23.98/25/29.97/100/120 fps [25 to 50 Mb/s] 1920 x 1080i at 50/59.94 fps [50 Mb/s] MPEG HD422 4:2:2 10-Bit 1920 x 1080p at 23.98/25/29.97 fps [50 Mb/s] 1920 x 1080i at 50/59.94 fps [50 Mb/s] XAVC Proxy 4:2:0 10-Bit 1920 x 1080 [9 Mb/s] 1280 x 720 [6 to 9 Mb/s] 640 x 360 [3 Mb/s] |
External Recording Modes | Raw 16-Bit via Proprietary Module 4096 x 2160 from 1 to 59.94 fps 3840 x 2160 from 1 to 59.94/100/120 fps 2048 x 1080 at 59.94/100/120/150/180 fps |
Sensor Crop Modes | Super35 / APS-C |
Fast-/Slow-Motion Support | Yes |
Gamma Curve | HDR-HLG, S Cinetone, Sony S-Log 3, Standard |
Built-In Microphone Type | Mono |
Audio Recording | XAVC: 4-Channel 24-Bit 48 kHz LPCM Audio Proxy: 2-Channel AAC Audio |
IP Streaming | Yes |
Media/Memory Card Slot | Slot 1: XQD Slot 2: XQD Dual Slot: SD/SDHC/SDXC/Memory Stick Duo Hybrid |

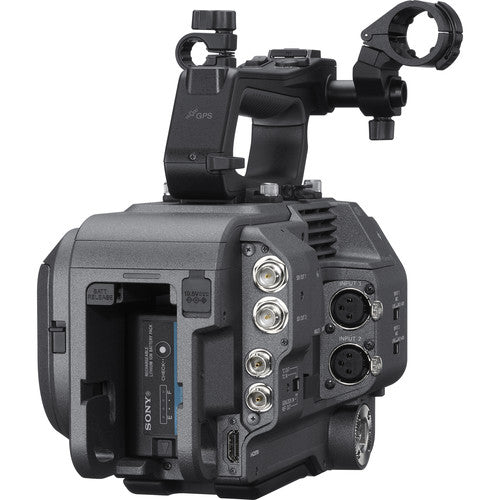

Video I/O | 1 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output 1 x HDMI 2.0 Output |
Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
Power I/O | 1 x Barrel (18 to 20.5VDC) Input |
Other I/O | 1 x BNC (Genlock) Data Input 1 x BNC (Timecode) Data Input/Output 1 x 2.5 mm Sub-Mini (LANC) Control 1 x Micro-USB (USB 3.2 / 3.1 Gen 1) Data |
Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac) |
Mobile App Compatible | Yes *As of April, 2023: Check with manufacturer for the most up-to-date compatibility |
Global Positioning (GPS, GLONASS, etc.) | None |
Size | 3.5" |
Resolution | 2,760,000 Dot |
Display Type | Included External Touchscreen LCD |
Type | Optional, Not Included |
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Manual Focus |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |

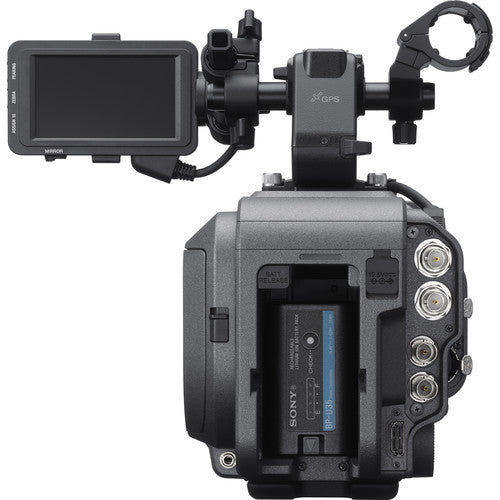

Battery Type | Sony BP-U Series |
Power Consumption | 35.2 W |
Tripod Mounting Thread | 3/8"-16 Female (Bottom) 1/4"-20 Female (Bottom) |
Accessory Mount | 1 x Intelligent Hot Shoe 1 x Cold Shoe Mount 2 x 3/8"-16 Female 6 x 1/4"-20 Female |
Netflix Approved | Yes |
Material of Construction | Magnesium Alloy |
Dimensions (W x H x D) | 5.7 x 5.6 x 9" / 146 x 142.5 x 229 mm (Without Protrusions) |
Weight | 10.58 lb / 4.8 kg (With Battery, Grip, Handle, Monitor, Recording Media, Viewfinder) 4.41 lb / 2.00 kg (Body Only) |
Package Weight | 8.16 kg |
Box Dimensions (LxWxH) | 60 x 20 x 13" |
